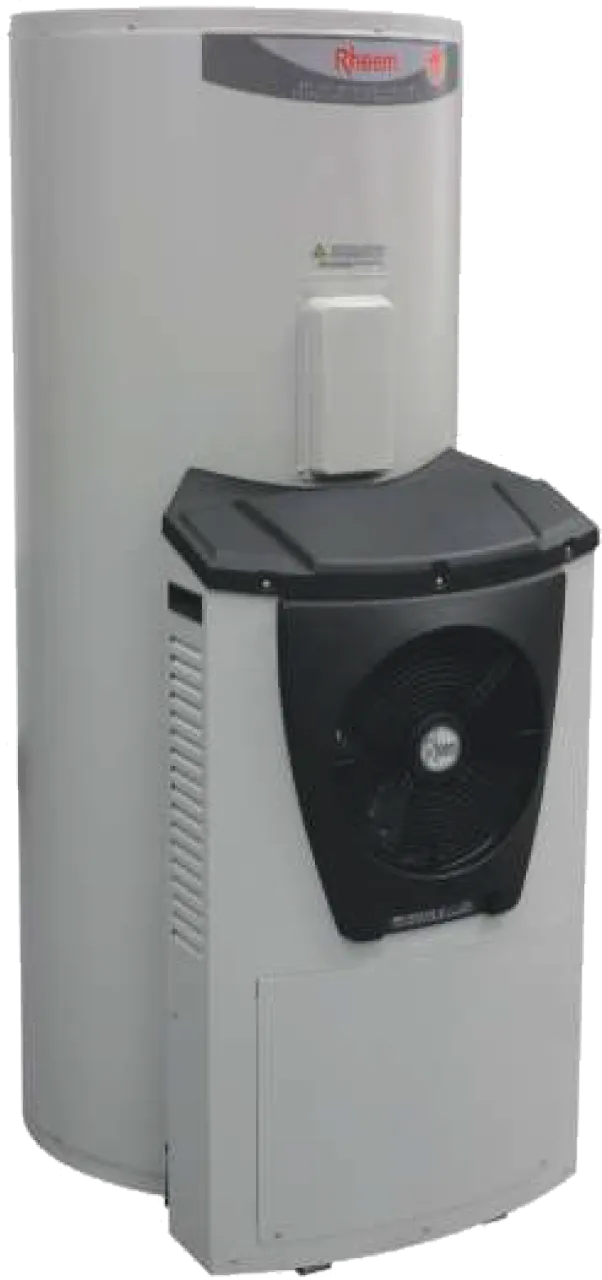

Rheem MPi Series All In One Heat Pump Water Heater
MODEL 554325
- Capable of producing hot water up to 60°C for residential and light commercial domestic water heating application
- Utilises multi-pass heating of the water
- Whisper technology enables quieter operation
Models
SKU 554325
Model Rheem MPi Series All In One Heat Pump Water Heater
Tank Capacity 90
- Cost-efficient installation without additional tempering valve required
- Easy installation that can be performed by certified plumbers
- Hot water readily available with unique, back-up element
- Ensures water is heated up with multi-pass heating, a process that heat water by passing the water through the heat exchanger multiple times
- Stay notified on operating status of water heater with in-built LED display
| MODEL | Mpi-325 | Mpi-410 |
| Product Code | 551325 | 551410 |
| Suitable for No. of People (Moderate Climate) | 2 - 5 | 2 - 6 |
| Dimensions | ||
| Height (A) (mm) | 1631 | 1842 |
| Width (B) (mm) | 894 | 961 |
| Depth (C) (mm) | 638 | 685 |
| Module Height (D) (mm) | 1018 | |
| Weight | ||
| Heat Pump Module (kg) | 42 | |
| Tank (kg) | 88 | 112 |
| Technical | ||
| Storage Capacity (L) | 325 | 410 |
| Power Input (Watts) | 800 | |
| Refrigerant | R134a | |
| Element Sizes (kW) | 1.8, 2.4 or 3.6 | 2.4 or 3.6 |
| Boost Capacity (L) | 180 | 200 |
| Water Connections & Settings | ||
| Inlet (RP) | 3/4 /20 | |
| Outlet (RP) | 3/4 /20 | |
| Tank Relief Valve Setting (kPa) | 1000 | |
| ECV Setting (kPa) | 850 | |
| Maximum Mains Pressure Settings | ||
| With ECV (kPa) | 680 | |
| Without ECV (kPa) | 800 | |
| Min. Water Supply Pressure (kPa) | 200 | |
Click here to learn more about heat pump water heaters
