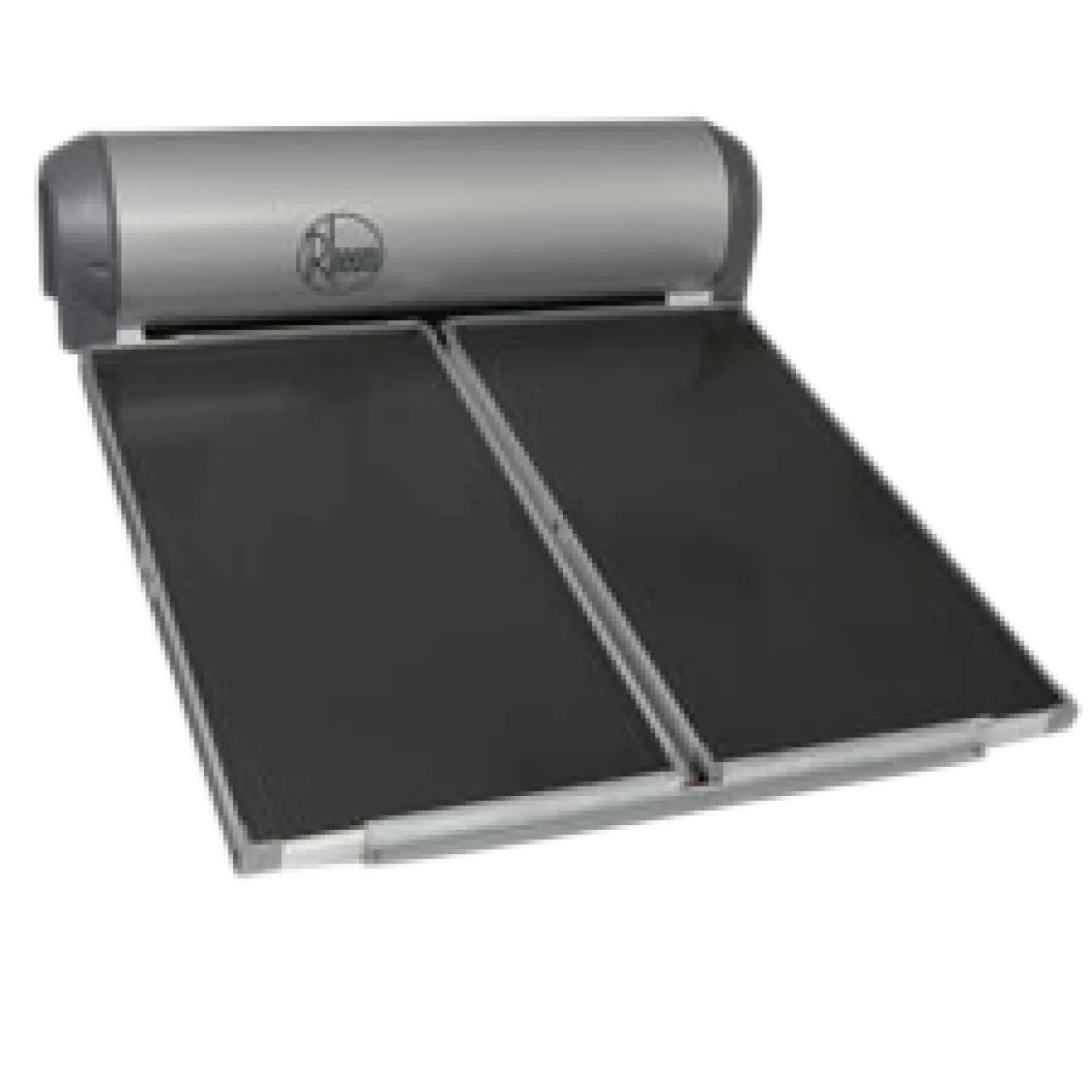

Premier Hiline Solar Water Heater
MODEL 511325
Contact store of purchase of specific warranty information.
- Close Coupled Collectors and 300 Litre Tank
- S200 Collector Provides Good Performance in All Locations
- Fully Frost Protected
- Better Suited to Poor Water Quality Areas
Models
SKU 511325
Model Premier Hiline Solar Water Heater
Rheem Premier Hiline® uses natural thermosiphon principles to efficiently transfer the energy from the collectors into the stainless steel storage tank. There is no need for circulators and primary flow and return lines. And the close coupled tank and collector saves plant room foot print. A closed circuit fluid transfers the energy via an internal heat exchanger into potable water stored in the tank.
- Close coupled collectors and 300 litre tank
- S200 collector provides good performance in all locations
- Electric booster provides hot water in poor weather conditions
- Fully frost protected
- Features an indirect heat exchange design, providing reliable operation in any climate
- Lightweight and durable stainless steel tank cylinder (52H Series).
- Space saving roof mounted installation.
- Suitable for use with a wide range of water chemistries (52C Series)
| Roof System Non-Frost | Roof System Frost-Protected | |||
| 52S160K/1NPT | 52S300K/2NPT | 52H180K/1S | 52H300K/2S | |
| Storage Capacity (L) | 160 | 300 | 180 | 300 |
| Solar Collectors | 1 (NPT200) | 2 (NPT200) | 1 (S200) | 2 (S200) |
| Booster Type | Electric | |||
| Booster Capacity (L) | 80 | 160 | 90 | 150 |
| People Per Household | 1-2 | 2-5 | 1-2 | 2-5 |
| Dimensions & Specifications | ||||
| Height (A) (mm) | 540 | 563 | ||
| Width (B) (mm) | 1138 | 2198 | 1138 | 2198 |
| Depth (C) (mm) | 2490 | |||
| Collector Depth (D) (mm) | 1937 | 1941 | 1941 | 1941 |
| Collector Width (E) (mm) | 1022 | 2094 | 1023 | 1023 |
| Collector Height (F) (mm) | 79 | 80 | ||
| Weight Empty – Tank (kg) | 70 | 100 | 53 | 78 |
| Weight Full – Tank (kg) | 230 | 400 | 231 | 373 |
| Weight Empty – Solar Collectors (kg) | 39 | 78 | 48 | 96 |
| Weight Full – Solar Collectors (kg) | 41 | 82 | 52 | 104 |
